Product info

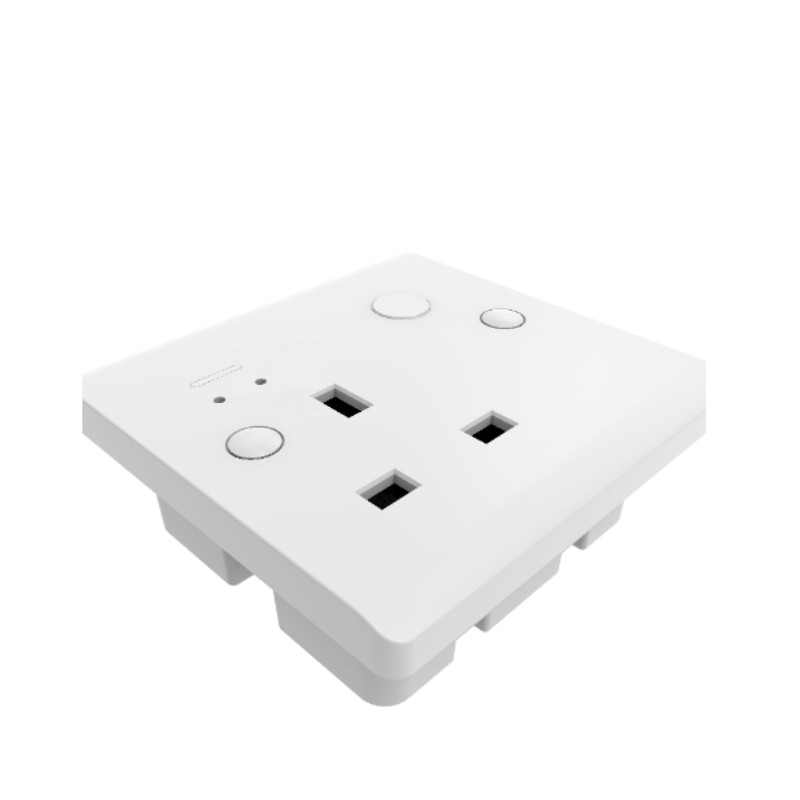

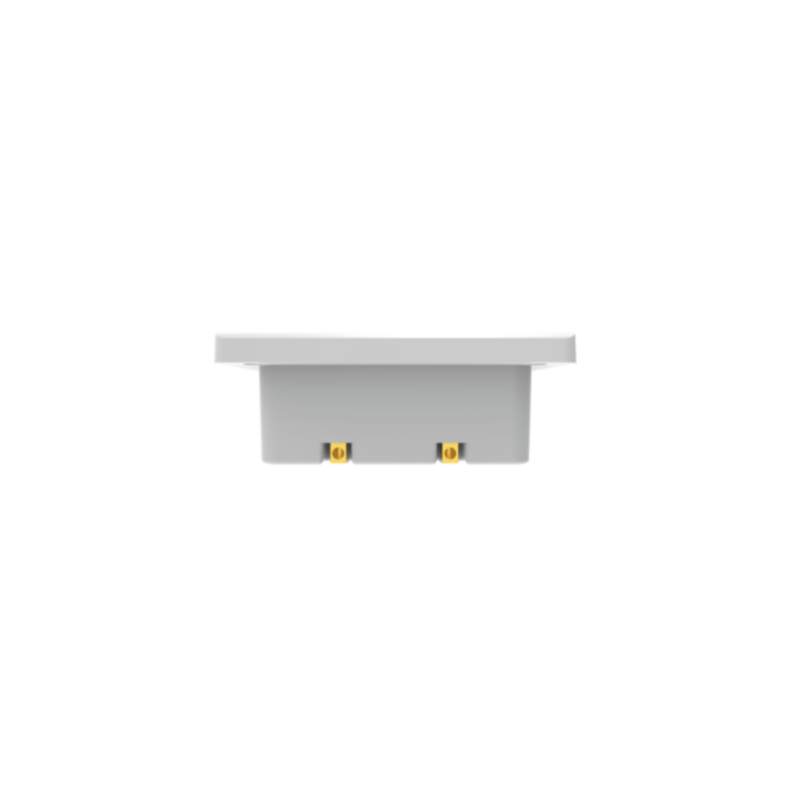

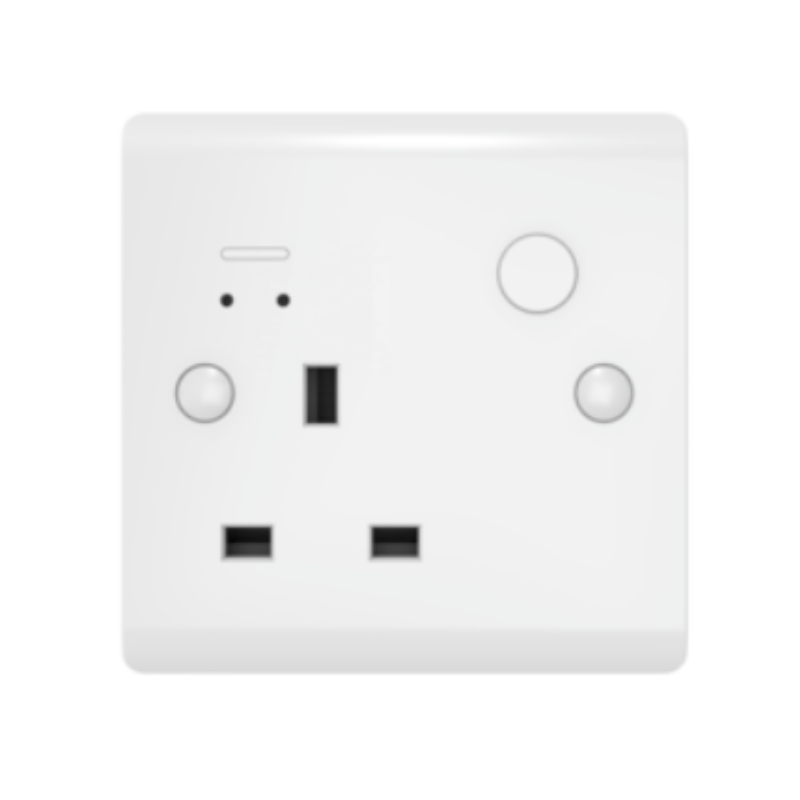

• "UK smart socket is a small Bluetooth/WIFI wall socket, integrating Bluetooth and WIFI wireless communication technology. You can use it whenever it powered you're your app. Remote control ON/OFF of the external device on the socket, install it before decoration to help to build a smart home.. Features Built in ESP32 module, support BLE& WiFi communication Provide configuration protocol for customers to access their own server platform, and support multiple server platforms such as EMQTT, AWS, ALI Support different encryption modes, no authentication / one-way authentication / two-way authentication Server parameters can be configured through the APP, the APP can be downloaded from Googleplay or APP store Provide IOS and android SDK for customers to develop their own APP Firmware update Over The Air (OTA) Support customized hardware with Zigbee, Z-wave , Lora and other wireless type Customized service: Schematic diagrams are available for customers to develop firmware Parameter for smart wall socket 1.Wireless technologyBLE&WIFI 2.Input voltage110VAC-260VAC 3.Max load current13A 4.Surge protectionDifferential mode 1500V, common mode 3000V, 1.2/50us lightning wave 5.Operation temperature& humidity0ºC~40 ºC/10%~90% 6.Plug typeUK 7.Dimensions86*86*10mm 8.Panel rear thickness20mm 9.Frequence range2.4GHz-2.5Ghz(2400MHz-2483.5MHz) 10.WIFI protocol802.11b/g/nOpen and no shielding environment 11.Transmission power11n MCS7 13dB,11b 18.5dB 12.ESP32BLE&WiFi 13.Bluetooth standardBluetooth V4.2 BLE 14.EMC & RF standardsEN301489,EN300328 15.Measurement parametersActive power Reactive power Power factor Active energy, level 1 Reactive energy, level 2 Grid frequency 18.Software developmentStandard firmware supports MQTT servers, also provide schematic diagrams for customers to develop firmware connecting to their own server 19.User configurationIOS&Android "
